HDPE drainage pipe fittings
For same floor, siphon drainage system
Note: The product size is for reference only, the actual size is subject to the actual product.
The rainwater bucket belongs to the branch of the metal rainwater system and is located at the entrance of the roof rainwater from the gutter into the rainwater pipeline. The rain bucket has a rectifying grid device, which can quickly remove roof rain.The grid has a rectifying effect to avoid the formation of excessive vortices, stabilize the water level in front of the bucket, reduce the aeration, and quickly remove roof rain and snow water, and can effectively block large debris Thing.
Siphon rain bucket is made of: siphon rain bucket chassis, stamped with high-quality 304 stainless steel. The pressure ring and shroud are made of die-cast hard aluminum alloy and zinc alloy. With anti-corrosion, anti-extrusion characteristics. The siphon rain bucket has a strong anti-eddy current function, which can prevent air from being brought into the entire system through the water flow at the entrance of the rain bucket. When the water level in the bucket rises to a certain level, a water seal is formed to completely block air from entering. And make the rainwater submerged smoothly into the drainage pipe. The siphon rain bucket minimizes the depth of water accumulation in the gutter, minimizes the rain load on the roof, and increases the rated flow of the rain bucket.
use:
The rainwater bucket, gutter, and metal downspout system built by the downpipe are decorative and practical.

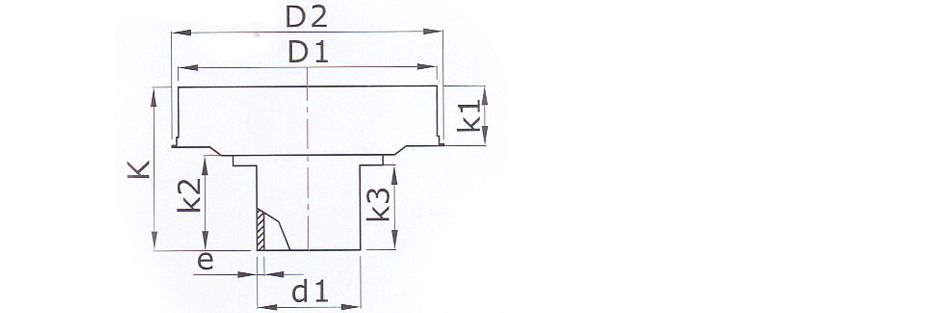

Article No | d1 / d2 | K | k1 | k2 | k3 | D1 | D2 |
11.01.56 | 56 | 163 | 56 | 202 | 195 | 211 | 221 |
11.01.75 | 75 | 164 | 56 | 202 | 195 | 211 | 221 |
11.01.90 | 90 | 164 | 56 | 202 | 195 | 211 | 221 |
11.01.110 | 110 | 165 | 56 | 202 | 195 | 211 | 221 |
11.01.125 | 125 | 168 | 56 | 202 | 195 | 211 | 221 |
