Product Name: Cleanout

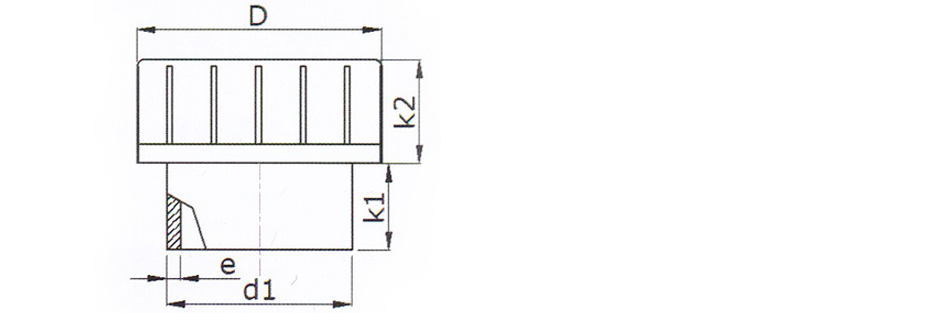

 Note: The product size is for reference only, the actual size is subject to the actual product.

The cleaning port is generally installed in the horizontal pipe, especially when there are many sanitary appliances connected to the horizontal branch pipe of each layer, the starting point of the horizontal branch pipe should be equipped with a cleaning port (sometimes it can be replaced by a floor drain). When two or more urinals or three or more sanitary appliances are connected to a cast iron cross-branch, and four or more urinals are connected to a plastic cross-branch, a cleaning port should be provided.

installation:

The installation of the sweeping opening must be flush with the ground, and the sweeping opening set at the starting point of the drainage cross pipe is generally kept at a distance of not less than 0.20 meters from the wall. When using a plug instead of a cleaning port, the distance must not be less than 0.4m.

effect:

Cleaning port function: installed on the drainage horizontal pipe. Opening the cleaning port when the pipe is blocked can clear the pipe, which is equivalent to the plug at the end of the pipe.

Sometimes it can be replaced by a floor drain.
