HDPE drainage pipe fittings
For same floor, siphon drainage system
Suvitto is a soda-water mixing joint
Its material is high-density polyethylene (HDPE) pipe, which is used to connect drainage branch pipes and risers in high-rise buildings with more than eight floors. Inside it is equipped with a water flow blocker, which can ensure that the water flow of each branch pipe can flow unobstructed in a certain direction, and at the same time, it can slow down the water flow rate and ensure that the air pressure is always in a stable state in the pipeline, thereby replacing the role of the vent pipe.
Its advantages:
①. 50 toilets can be connected at the same time on the same floor.
②. It effectively reduces the noise of water flow caused by drainage and creates a quiet environment for the house.
③. 6 branch pipes can be connected at the same time, thereby reducing the number of risers.

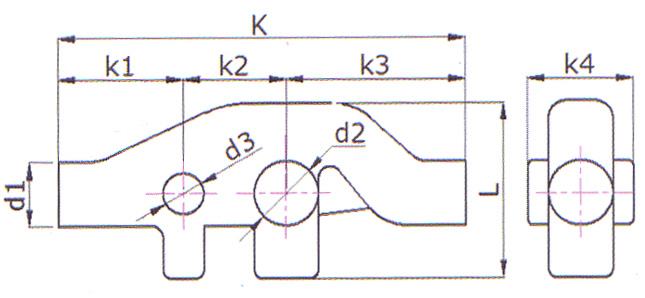

Article No | d1 / d2 | K | k1 | k2 |
10.16.110 | 110 | 700 | 215 | 180 |
K3 | K4 | e | L | |
305 | 183.4 | 4.4 | 300 |
